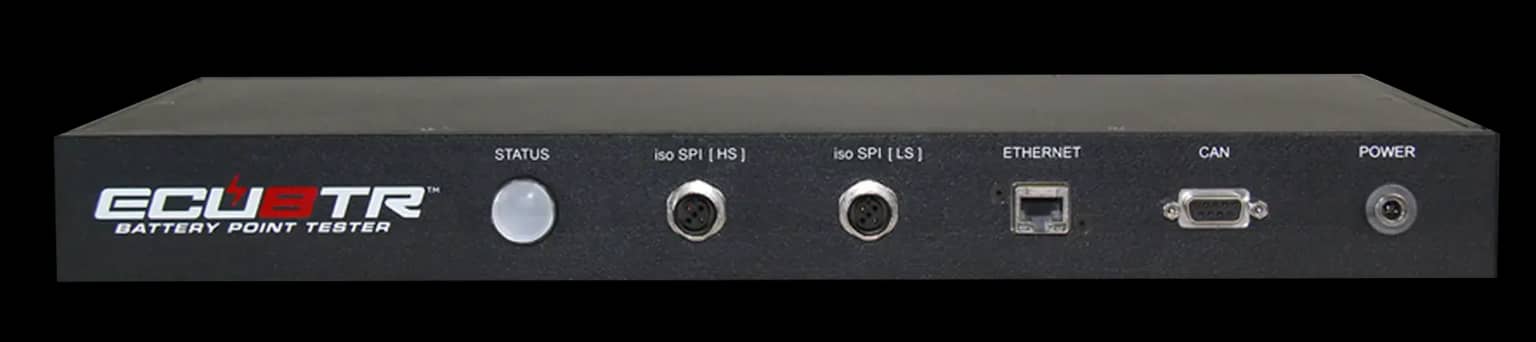

ECU8TR™ Battery Factory Point Tester

ABOUT ECU8TR™

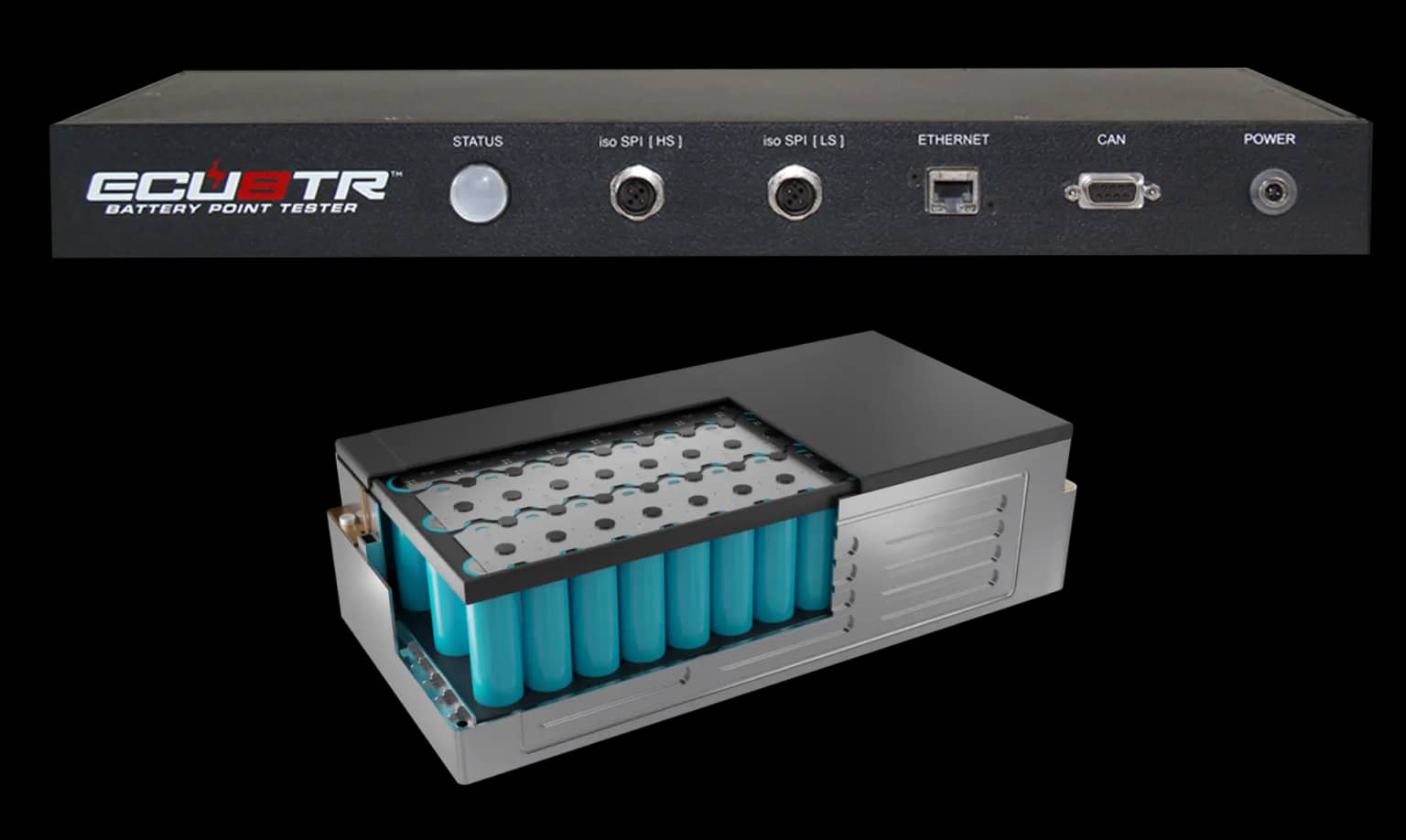

An advanced tester designed to verify cell monitor operations in battery modules or packs. Its intuitive design integrates seamlessly into manufacturing, offering real-time monitoring to help manufacturers make informed decisions and address issues at any stage.

SPECIFICATIONS

INTERFACES

ISO COMM (Analog Devices ISO SPI BMS Devices, Infineon ISO UART BMS Devices, NXP BMS Devices, and Texas Instruments BMS Devices) analog frontend Ethernet network interface - 10/100 baseT CAN FD Interface via 9-pin DSub connector 12V Power Input via Barrel Jack

DIMENSIONS

Standard 1U Chassis Size

8.000"L x 16.600"W x 1,750"H

203.20mm x 421.64mm x 44.45mm

POWER

12V/36W AC/DC External Desktop (Class 1)

Adapter International, 90 ~ 264 VAC

INDICATORS

Test mode and results LED indicator

CERTIFICATIONS

UL Certified (UL61010)

Technology Agnostic

Designed with multiple interfaces in mind, ECU8TR™ boasts extensive compatibility.

Command Functions

ECU8TR™ is used to initiate functions such as balancing, register writes, and diagnostics.

Real-Time Detection

Use the ECU8TR™ to find issues before they manifest, optimizing your QA operations.
